Types of Electrolysis Process

Electrolysis Process is utilized in several ways:

1. Alkaline Electrolyzer

Technology:  Uses an alkaline electrolyte, typically a solution of potassium hydroxide (KOH) or sodium hydroxide (NaOH) in water.

Electrodes: Nickel-based electrodes

Operation: Hydrogen ions (OH⁻) are transported through the alkaline solution, while hydrogen is produced at the cathode, and oxygen at the anode.

Efficiency: Typically around 60-70%.

Advantages: Mature technology, relatively inexpensive, long lifetime, operates at atmospheric pressure or low pressure.

Challenges:  Slow startup time, lower current density, sensitive to impurities, and requires the use of corrosive electrolytes.

2. Proton Exchange Membrane (PEM) Electrolyzer

Technology:  Uses a solid polymer electrolyte (a proton exchange membrane) to conduct protons from the anode to the cathode.

Electrodes:  Platinum or iridium-based catalysts

Operation: Water is split at the anode into oxygen and protons (H⁺), which are transported through the membrane. The protons combine with electrons at the cathode to produce hydrogen.

Efficiency: Around 70-80%.

Advantages: High current density, fast response times, compact design, ability to operate under high pressure, produces high-purity hydrogen.

Challenges:  Higher cost due to the use of precious metals (platinum and iridium), and shorter lifetime compared to alkaline electrolyzers.

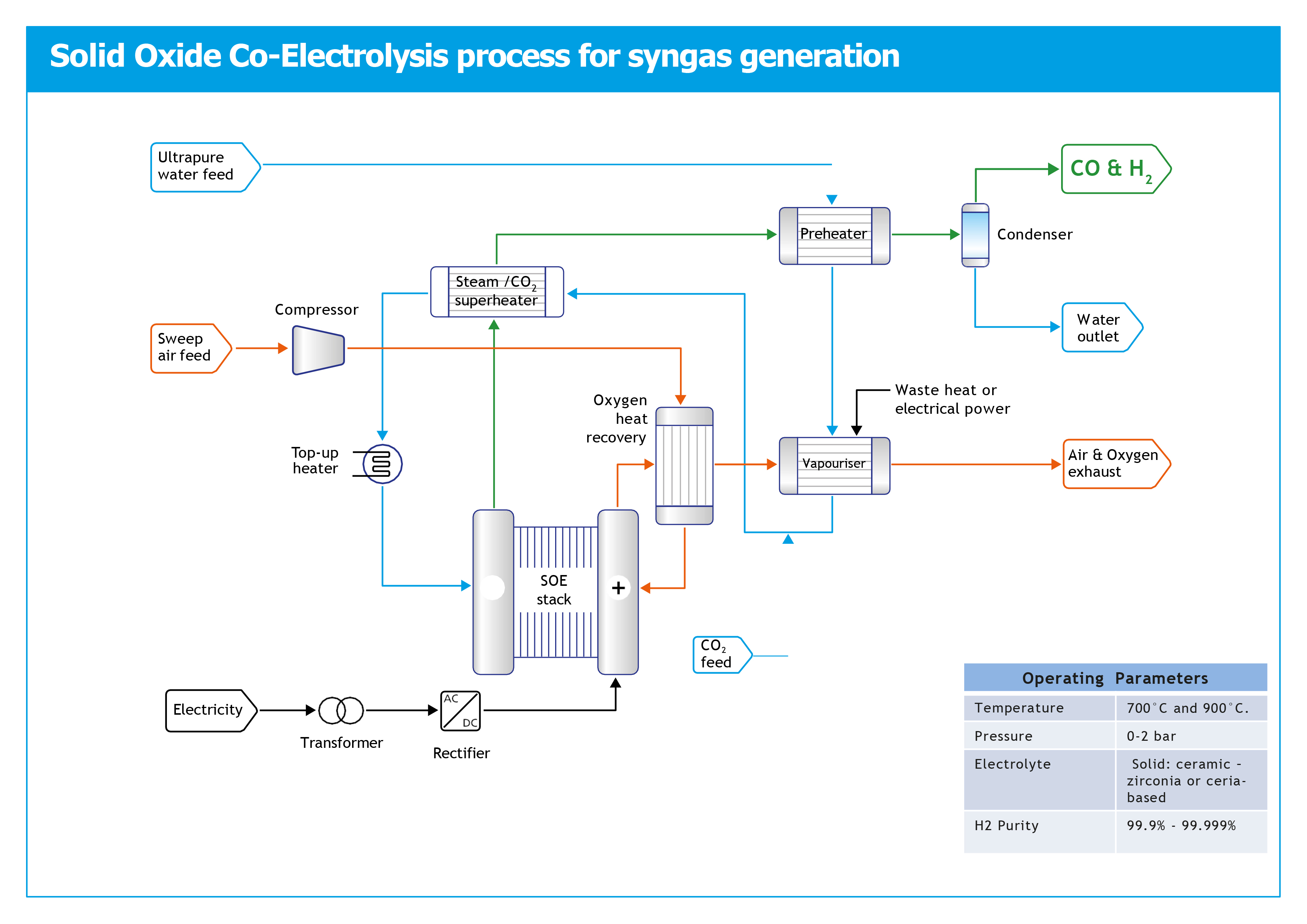

3. Solid Oxide Electrolyzer Cell (SOEC)

Technology:  Uses a solid ceramic electrolyte (such as zirconium oxide stabilized with yttrium oxide) that conducts oxygen ions (O²⁻) at high temperatures (700-1,000°C).

Electrodes: Nickel or perovskite-based materials.

Operation: Water is split at the cathode, where oxygen ions are conducted through the solid oxide electrolyte to the anode, releasing oxygen gas. Hydrogen is produced at the cathode.

Efficiency: Potentially up to 90% due to high operating temperatures and the possibility of using waste heat.

Advantages: High efficiency, ability to integrate with high-temperature heat sources (e.g., industrial processes or nuclear reactors), and potential for reversible operation (can also work as a fuel cell).

Challenges:  Requires high operating temperatures, complex materials, and challenges in long-term durability due to thermal cycling.

4. Anion Exchange Membrane (AEM) Electrolyzer

Technology:  Similar to PEM electrolyzers but uses an anion exchange membrane (AEM) to transport hydroxide ions (OH⁻) instead of protons.

Electrodes: Non-precious metal catalysts (e.g., nickel or cobalt).

Operation: Water is split at the anode into oxygen and hydroxide ions. The hydroxide ions migrate through the membrane to the cathode, where they form hydrogen.

Efficiency: Comparable to alkaline or PEM electrolyzers.

Advantages: Potentially lower cost than PEM electrolyzers due to the use of non-precious metal catalysts, and it combines the benefits of alkaline and PEM technologies.

Challenges:  Still an emerging technology, with challenges in membrane stability, scalability, and durability.

5. Polymer Alkaline Membrane Electrolyzer

Technology:  A hybrid of alkaline and PEM technologies, using a solid alkaline polymer membrane.

Electrodes:  Non-precious metal catalysts.

Operation:  Functions like an alkaline electrolyzer but uses a solid membrane instead of a liquid electrolyte, offering better efficiency and compact design.

Efficiency:  Comparable to PEM electrolyzers, with less expensive materials.

Advantages:  Low-cost materials, high efficiency, and compact design.

Challenges:  Still under research, facing durability and long-term stability issues.

Each type of electrolyzer has its own strengths and weaknesses, making them suitable for different applications, depending on cost, efficiency, and the specific operational conditions.
